CargoMaster - Stair climbers for professionals

Find the perfect
CargoMaster for your needs


To help you choose the right CargoMaster, we have created a product comparison for you.

Below you will find a table in which you can see the technical data of our models in direct comparison. If you have any further questions or would like personalised advice, please do not hesitate to contact us at any time.

Product comparison CargoMaster

CargoMaster electric stair climbers compared – technical data, as of 10/2026
Model Lifting capacity Climbing speed ¹ Range per battery charge ¹ Battery Motor Weight with / without battery Product page
High-Speed Climbing System Fast, light and flexible Recommended for: wholesale, delivery services, oxygen cylinders, public authorities
CargoMaster C120 S 120kg 19–50steps/min 255–375steps 2 × 12 V / 5 AhBattery weight 4.1 kg 24 V / 300 W 21.4 / 17.3kg Details about the CargoMaster C120 S
CargoMaster C120 F 120kg 19–50steps/min 255–375steps 2 × 12 V / 5 AhBattery weight 4.1 kg 24 V / 300 W 21.9 / 17.8kg Details about the CargoMaster C120 F
CargoMaster C120 V 120kg 19–50steps/min 255–375steps 2 × 12 V / 5 AhBattery weight 4.1 kg 24 V / 300 W 22.5 / 18.4kg Details about the CargoMaster C120 V
Comfort Climbing System Medium-weight and bulky loads Recommended for: white goods, tile and parquet layers, copiers
CargoMaster CC160 ComfortStep 160kg 12–25steps/min 120–375steps 2 × 12 V / 5 AhBattery weight 4.3 kg 24 V / 275 W 28.9 / 24.6kg Details about the CargoMaster CC160
CargoMaster CC160 Li-Ion ComfortStepLi-Ion · AMPShare 160kg 12–25steps/min 546–1124steps 144 Wh (18 V × 8 Ah)Battery weight 1.0 kg 18 V / 275 W 25.6 / 24.6kg Details about the CargoMaster CC160 Li-Ion
CargoMaster CC200 ComfortStep 200kg 9–20steps/min 120–450steps 2 × 12 V / 5 AhBattery weight 4.3 kg 24 V / 275 W 30.5 / 26.2kg Details about the CargoMaster CC200
CargoMaster CC200 Li-Ion ComfortStepLi-Ion · AMPShare 200kg 9–20steps/min 330–1065steps 144 Wh (18 V × 8 Ah)Battery weight 1.0 kg 18 V / 275 W 27.0 / 26.0kg Details about the CargoMaster CC200 Li-Ion
Heavy-Duty Climbing System Heavy duty up to 400 kg Recommended for: heating engineers, stove fitters, gaming and vending machines
CargoMaster A350 350kg 5–11steps/min 18–57floors 2 × 12 V / 7.2 AhBattery weight 5.9 kg 24 V / 275 W 50.4 / 44.5kg Details about the CargoMaster A350
CargoMaster A400 Li-Ion · AMPShare 400kg 5–14steps/min 420–520steps 144 Wh (18 V × 8 Ah)Battery weight 1.0 kg 18 V / 275 W 46.2 / 45.2kg Details about the CargoMaster A400
CargoMaster C400 Lift function 400kg 3–7steps/min 150–300steps 2 × 12 V / 5 AhBattery weight 4.1 kg 24 V / 275 W 86.1 / 82.0kg Details about the CargoMaster C400

¹ Climbing speed and range decrease as the load increases. The bars show the range relative to the fastest and longest-running model. For the A350, range is given in floors: approx. 18 floors at 350 kg, approx. 57 floors at an average load of 75 kg. Further details can be found in the operating instructions on each product page.

CargoMaster Model Product page Lifting capacity Max. Range (1) Climbing speed (1) Battery Motor Total weight with battery Total weight without battery Weight battery
C120 S view 120 kg 255-375 steps 19-50 steps / minute 2 x 12 V / 5 Ah 24 V / 300 W 21,4 kg 17,3 kg 4,1 kg
C120 F view 120 kg 255-375 steps 19-50 steps / minute 2 x 12 V / 5 Ah 24 V / 300 W 21,9 kg 17,8 kg 4,1 kg
C120 V view 121 kg 255-375 steps 19-50 steps / minute 2 x 12 V / 5 Ah 24 V / 300 W 22,5 kg 18,4 kg 4,1 kg
CC160 view 160 kg 120-375 steps 12-25 steps / minute 2 x 12 V / 5 Ah 24 V / 275 W 28,9 kg 24,6 kg 4,3 kg
CC160 Li-Ion view 160 kg 546-1124 steps 12-25 steps / minute 144 Wh (18 V x 8 Ah) 18 V / 275 W 25,6 kg 24,6 kg 1,0 kg
CC200 view 200 kg 120-450 steps 9-20 steps / minute 2 x 12 V / 5 Ah 24 V / 275 W 30,5 kg 26,2 kg 4,3 kg
CC200 Li-Ion view 200 kg 330-1065 steps 9-20 steps / minute 144 Wh (18 V x 8 Ah) 18 V / 275 W 27,0 kg 26,0 kg 1,0 kg
A350 view 350 kg 330-650 steps 4-10 steps / minute 2 x 12 V / 1,2 Ah 24 V / 275 W 49,0 kg 43,0 kg 6,0 kg
C400 view 400 kg 150-300 steps 3-7 steps / minute 2 x 12 V / 5 Ah 24 V / 275 W 81,1 kg 82,0 kg 4,1 kg

1. Weight dependency of the performance: As the weight of the transported goods increases, both the reach and the climbing speed are reduced.

Range specification: To ensure better comparability, the specified range was determined in mixed operation (up and down stairs) and at the maximum lifting capacity per model up down to an average lifting capacity of 75 kg.

Note: For further technical details and specifications, please refer to the respective user manuals for the model, which can be downloaded from the product page.

Have you found a CargoMaster that meets your technical requirements?


Below you will find a brief overview of our CargoMaster stair climbers and their product highlights. Further information can be found on the respective product pages. Simply click on the button below the respective product.

CargoMaster C120

The CargoMaster C120 is the ideal solution for the fast and safe transportation of loads up to 120 kg. Available in three versions, the C120 adapts perfectly to different transport requirements.

  • Multi-level battery indicator
  • Available with three handle variants
  • Compatible with the BG BAU occupational safety premium
  • Extremely safe thanks to a stepped edge braking system
  • Lifting capacity up to 120 kg
CargoMaster mit Lithium-Akku AMPShare von Bosch

CC-System 160/200 Li-Ion

Discover the latest version of our proven stair climber - with improved performance, reduced weight and the flexibility of the Bosch AMPShare system. The CargoMaster CC Li-Ion sets new standards in the transportation of medium-heavy and bulky loads on stairs.
  • With the latest Bosch Li-Ion battery technology
  • Comfort step for a gentle touchdown
  • Extremely safe thanks to a stepped edge braking system
  • Compatible with the BG BAU occupational safety premium
  • Lifting capacity up to 160 / 200 kg

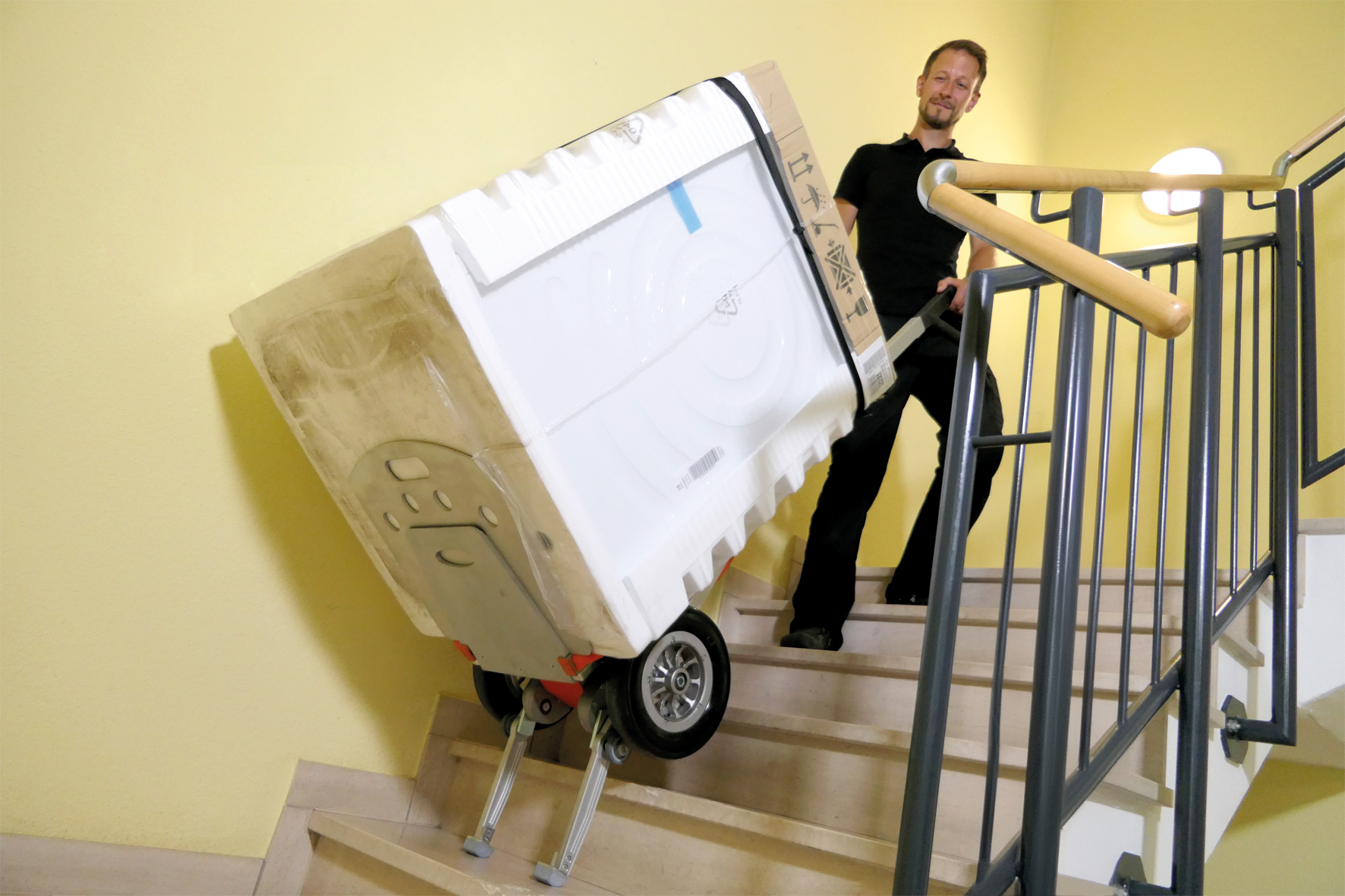

CC-System 160/200

The CC series stair climbers are the right choice when it comes to medium-heavy or bulky loads. Its low weight and easy handling make the CargoMaster from the CC series an indispensable aid.
  • With proven lead-gel battery
  • Comfort step for a gentle climbing process
  • Extremely safe thanks to a steps edge braking system
  • Compatible with the BG BAU occupational safety premium
  • Lifting capacity up to 160 / 200 kg

CargoMaster A350

The CargoMaster A350 is a powerful, electrically powered stair climber that enables the safe transport of loads weighing up to 350 kg. Particularly suitable for very heavy, bulky and high loads such as boilers, photocopiers or gaming machines, it makes everyday work considerably easier.
  • Center of gravity adjustment through height-adjustable load bucket
  • Infinitely variable climbing speed
  • Continuous climbing mode / single step mode
  • Extremely safe thanks to a stepped edge braking system
  • Lifting capacity of up to 350 kg

CargoMaster A400 LI-ION

The CargoMaster A400is a powerful, electrically powered stair climber that enables the safe transport of loads weighing up to 400 kg. Particularly suitable for very heavy, bulky and high loads such as boilers, photocopiers or gaming machines, it makes everyday work considerably easier.

  • Center of gravity adjustment through height-adjustable load bucket
  • Infinitely variable climbing speed
  • Continuous climbing mode / single step mode
  • Extremely safe thanks to a stepped edge braking system
  • Lifting capacity of up to 400 kg

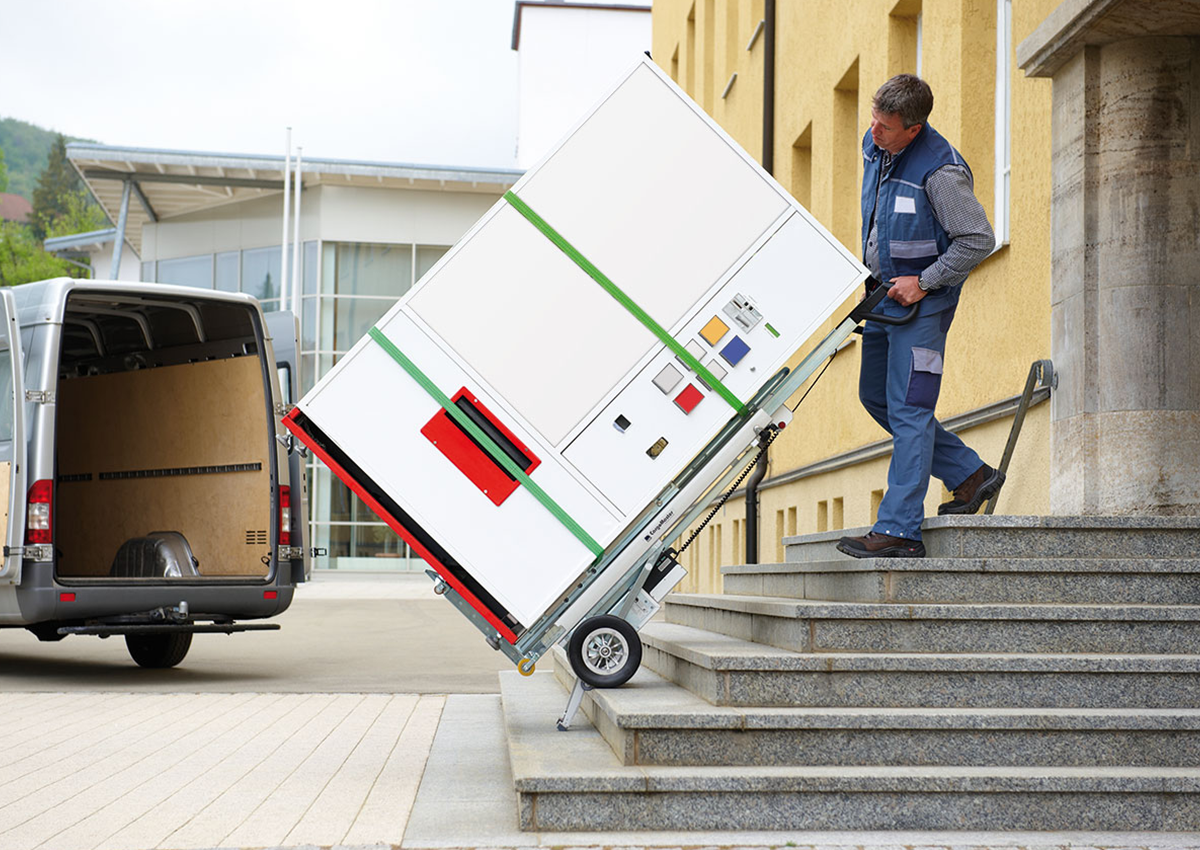

CargoMaster C400

The CargoMaster C400 enables the safe transportation of loads weighing up to 400 kg up and down stairs and on level ground, both indoors and outdoors. With the C400, a single person can handle these tasks efficiently and safely on their own.
  • Integrated lift for easy loading and unloading
  • Optimization of centre of gravity through lift function
  • Extremely safe thanks to a stepped edge braking system
  • Continuous climbing mode / single step mode
  • Lifting capacity up to 400 kg
Made in Germany
